Introduction

In the field of corrosion control, soil resistivity stands out as a key parameter that directly impacts how we assess and mitigate external corrosion on buried metallic structures like pipelines, tanks, and casings. For corrosion technicians, grasping soil resistivity isn't just about numbers, it's about translating those values into practical decisions that protect assets, optimize cathodic protection systems, and ensure long term integrity. Whether you're conducting surveys, designing groundbeds, or troubleshooting CP performance, soil resistivity provides the foundation for understanding the electrochemical environment surrounding your structures.

This article dives into the essentials of soil resistivity, tailored for technicians working in corrosion control and cathodic protection. We'll start with the basics, explore influencing factors, and move into measurement techniques, interpretation, and real-world applications. Along the way, we'll touch on relevant standards like AMPP SP0169 (Control of External Corrosion on Underground or Submerged Metallic Piping Systems), which emphasizes soil resistivity in evaluating corrosivity and guiding CP design. By the end, you'll have actionable insights to apply in your daily fieldwork.

Understanding the Basics of Soil Resistivity

At its core, soil resistivity measures how much the soil resists the flow of electric current. Denoted by the Greek letter ρ (rho), it's typically expressed in ohm-meters (Ω·m) or ohm-centimeters (Ω·cm), with conversions straightforward: 1 Ω·m equals 100 Ω·cm. In corrosion terms, soil serves as the electrolyte in the electrochemical cell that drives metal deterioration. The resistivity value tells us how easily current can flow through that electrolyte, influencing the rate at which anodic and cathodic reactions occur on buried metals.

Think of it this way: In low-resistivity soils, current flows more freely, much like water through a wide pipe. This facilitates corrosion currents between anodic sites (where metal dissolves) and cathodic sites (where reduction reactions happen), accelerating material loss. Conversely, high-resistivity soils act like a narrow pipe, restricting current flow and generally slowing corrosion. However, this doesn't mean high-resistivity environments are always benign, localized variations can create hotspots that demand careful attention.

Soil resistivity isn't a static property; it's dynamic and site-specific. Standards like AMPP SP0169 highlight its role in corrosion risk assessment, noting that resistivity helps classify soil corrosivity alongside other factors. For instance, soils below 10 Ω·m (1,000 Ω·cm) are often flagged as highly corrosive, prompting more aggressive mitigation strategies.

Factors Influencing Soil Resistivity

Several environmental and physical elements affect soil resistivity, and understanding them helps technicians predict how corrosivity might change over time or across a site. Moisture content is perhaps the most significant: Water acts as a conductor, so saturated soils exhibit lower resistivity than dry ones. A drop in moisture from 20% to 10% can double or triple resistivity, potentially altering CP current distribution.

Temperature plays a role too. As soil warms, ion mobility increases, lowering resistivity; typically by about 2-3% per degree Celsius rise. In colder climates, frozen soil can spike resistivity dramatically, complicating winter surveys. Ionic content, such as dissolved salts (chlorides, sulfates), further reduces resistivity by providing more charge carriers. This is why coastal or saline areas often show aggressive corrosivity.

Soil texture and structure matter as well. Fine-grained soils like clays and silts trap moisture and ions, leading to lower resistivity (often 5-20 Ω·m). Coarser materials like sands and gravels drain quickly, resulting in higher values (50-5,000 Ω·m or more). Layering adds complexity: A high-resistivity surface layer over a conductive stratum might mask underlying risks, requiring depth-profiling during measurements.

AMPP SP0169 and related standards, such as AMPP TM0497 (Measurement Techniques Related to Criteria for Cathodic Protection on Underground or Submerged Metallic Piping Systems), stress documenting these factors during surveys. Technicians should note seasonal variations, as resistivity can fluctuate 10-50% between wet and dry periods, impacting CP effectiveness.

The Role of Soil Resistivity in Corrosion Processes

Soil resistivity directly ties into the electrochemical reactions driving external corrosion. In a typical corrosion cell on a buried pipeline, the soil electrolyte enables ion movement between anodes and cathodes. Low resistivity (<10 Ω·m) promotes macro-cell corrosion, where distant anodic and cathodic areas lead to pitting or uniform thinning. This is common in wet, saline soils and can result in rapid failures if not addressed.

High resistivity (>100 Ω·m) limits these currents, reducing overall corrosion rates. But it can create challenges for cathodic protection, as current from anodes struggles to reach protected structures. In such cases, technicians might observe uneven polarization, where parts of the pipeline remain underprotected.

Beyond direct corrosion, resistivity influences stray current interference. In low-resistivity soils, DC traction systems or nearby CP installations can induce unwanted currents, accelerating corrosion at anodic points. AMPP SP0169 recommends using resistivity data to model these risks during External Corrosion Direct Assessment (ECDA) processes.

Integrating resistivity with other parameters; like pH, redox potential, and microbial activity; provides a fuller picture. For example, low-resistivity, anaerobic soils might foster microbiologically influenced corrosion (MIC), where bacteria like sulfate-reducers thrive. Technicians use this holistic view to prioritize digs, coatings repairs, or CP upgrades.

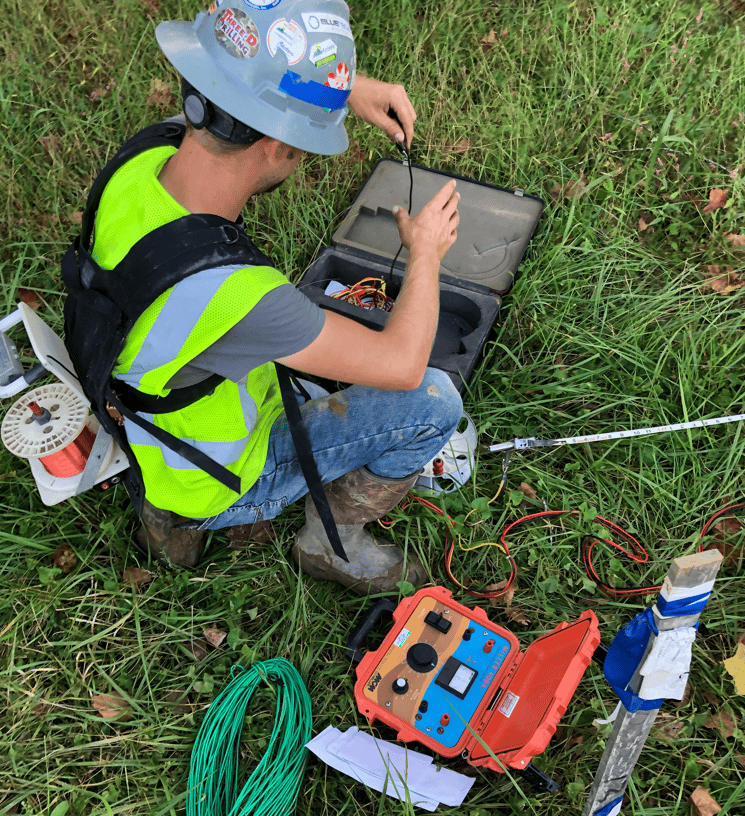

Measuring Soil Resistivity in the Field: Step-by-Step Procedures

Accurate measurement is crucial, and the Wenner Four-Electrode Method remains the gold standard for field technicians, as endorsed by AMPP TM0497 and ASTM G57 (often referenced in AMPP contexts). This technique minimizes contact resistance errors and allows depth profiling. Here's a step-by-step guide to executing it properly:

  1. Prepare Equipment: Use a soil resistivity meter with four stainless steel pins, cables, and a power source. Calibrate the instrument per manufacturer guidelines, and ensure pins are clean and sharp for good soil contact.

  2. Select Test Locations: Choose sites representative of the pipeline route or structure. Space measurements every 100-500 feet along the alignment, avoiding disturbed areas, buried utilities, or metallic interference. For depth profiling, plan multiple spacings.

  3. Insert Electrodes: Drive four pins into the soil in a straight line, equally spaced (distance 'a' in meters). Start with a small 'a' (e.g., 0.5 m) for shallow readings, increasing progressively (up to 10-20 m) for deeper profiles. Pins should penetrate at least 5-10% of 'a' to ensure contact.

  4. Connect and Measure: Attach outer pins to current terminals (C1, C2) and inner pins to potential terminals (P1, P2). Apply a low-frequency AC current (to avoid polarization) and record the resistance (R) in ohms.

  5. Calculate Resistivity: Use the formula ρ = 2πaR for uniform soil (in Ω·m). For layered soils, apply Barnes corrections if needed. Software in modern meters often handles this automatically.

  6. Document and Repeat: Record 'a', R, ρ, along with GPS coordinates, soil type, moisture, temperature, and weather. Perform at least three readings per spacing, averaging them. If values vary >10%, investigate anomalies.

Alternative methods include the soil box (for lab samples, per ASTM D1125) or driven rod techniques for quick spot checks. In CP design per AMPP SP0169, combine field data with lab analysis for contaminated sites.

Best practices: Test during typical operating conditions (e.g., wet season for conservative estimates). Avoid high-voltage lines or thunderstorms for safety. If interference is suspected, switch to DC methods with polarity reversal.

Interpreting Soil Resistivity Data

Once measured, resistivity values guide corrosivity classification. AMPP SP0169 provides thresholds adapted from industry norms:

  • <10 Ω·m (1,000 Ω·cm): Very corrosive—high current flow, prioritize CP and frequent monitoring.

  • 10-20 Ω·m (1,000-2,000 Ω·cm): Corrosive—moderate risk, suitable for galvanic anodes.

  • 20-100 Ω·m (2,000-10,000 Ω·cm): Mildly corrosive—CP feasible but may need impressed current.

  • 100 Ω·m (10,000 Ω·cm): Low corrosivity—corrosion slow, but CP design must overcome resistance.

Interpret in context: A uniform low-resistivity profile signals widespread risk, while variations suggest macro-cells. Compare with historical data to spot changes from leaks or backfill shifts.

For CP, resistivity informs current demand calculations. Using Ohm's Law variants, estimate anode output: Lower ρ means higher current needs but better distribution. Tools like the Dwight formula incorporate ρ for groundbed resistance.

Practical Applications in Corrosion Control

Soil resistivity data drives several key activities for technicians:

  • Risk Assessment in ECDA: Per AMPP SP0169, integrate resistivity into indirect inspections to rank segments for direct examination.

  • CP System Design: Calculate anode bed resistance and current requirements. In low-ρ soils, shallow horizontal anodes suffice; high-ρ demands deep wells to reach conductive layers.

  • Groundbed Configuration: Space anodes based on ρ to achieve uniform protection. For example, in 50 Ω·m soil, closer spacing prevents attenuation.

  • Monitoring and Adjustments: Annual surveys track ρ changes, triggering rectifier tweaks or supplemental anodes.

  • Regulatory Reporting: Pipeline standards like 49 CFR 192/195 require resistivity documentation to validate CP adequacy.

In practice, a technician might use resistivity to justify switching from galvanic to impressed current in rocky, high-ρ terrain, saving costs long-term.

Common Challenges and How to Overcome Them

Field measurements aren't foolproof. Heterogeneity—variations over short distances—can skew averages; mitigate by increasing test points and using geostatistical mapping.

Environmental sensitivity: Rain can halve ρ temporarily. Schedule tests in stable weather and note conditions. Temperature corrections (e.g., normalize to 25°C) help.

Interference: Buried lines or stray DC can distort readings. Use filters on meters or relocate tests.

Interpretation pitfalls: Over-relying on ρ ignores other factors like aeration. Always cross-reference with pH (acidic low-ρ soils are aggressive) or ion tests.

Equipment issues: Poor pin contact in dry soil raises errors—wet insertion points if needed. Calibration lapses lead to inaccuracies; verify annually.

By following AMPP guidelines and maintaining vigilance, technicians can turn these challenges into opportunities for precise corrosion management.

Key Takeaways and Final Thoughts

Soil resistivity is more than a measurement—it's a practical tool for corrosion technicians to evaluate environments, design effective CP, and maintain asset integrity. By understanding its basics, measuring accurately, and interpreting in the context of standards like AMPP SP0169 and TM0497, you can make data-driven decisions that prevent failures and extend service life.

Remember: Low resistivity signals high risk but eases CP; high resistivity slows corrosion but complicates protection. Integrate it with comprehensive surveys for robust strategies. Mastering this enhances your fieldwork, ensuring safer, more efficient operations.
