Locating and Repairing Cable Breaks in CP Systems

You're standing at the rectifier doing a routine inspection. Voltage looks fine. 14 volts, maybe 14.2. Normal. You check the shunt, do the math on your millivolt reading. The number doesn't make sense. You check it again.

The amps are near zero.

The rectifier is running. The voltage is there. But the current output is a fraction of what it should be, or nothing at all. Something has broken the circuit between the rectifier and the anode bed.

This is one of the most common maintenance issues corrosion technicians deal with. And one of the least documented. There's no shortage of guidance on CP system design or annual survey procedures. But the practical field process for tracking down a cable break, confirming its location, making the repair correctly, and verifying the system afterward? That knowledge mostly lives in people's heads.

This article walks through it start to finish.

Before you start tracing cable, let the rectifier tell you what kind of problem you have.

Two readings matter: voltage and current. The combination tells you where to look.

If you have zero voltage AND zero current, the problem is likely inside the rectifier or its AC supply. A tripped breaker, a blown fuse, lost AC power to the unit. Reset the breaker. If it holds, restore output and monitor. If it trips again, you have a short somewhere. And that's a different diagnosis. But the point is: no voltage, no current means don't go looking for a buried cable break yet. Start at the rectifier itself.

If you have voltage present but low or zero current, you have an open circuit somewhere in the external system. The rectifier is energized and trying to push current through the circuit. Nothing is completing the path. That's a cable break.

Zero current output with normal voltage output points to an open in the positive or negative DC cable, a blown output fuse, or a failed anode bed connection. Start systematic: check the fuses at the rectifier output first, then begin tracing the cable circuit.

Most cable breaks in CP systems happen on the positive (+) side of the circuit, and there are good electrochemical reasons for it.

The positive cable runs from the rectifier output terminal to the anode bed. It carries current at a positive potential relative to the surrounding earth. Underground, that elevated potential creates an anodic condition at any point where the cable insulation has been compromised. A nick from a rock, damage from past excavation work, a weak spot in aging insulation. Wherever soil moisture can reach the conductor, the exposed metal becomes anodic to the surrounding soil. It corrodes. The same electrochemical process that CP is supposed to prevent on your pipeline is now happening to your cable.

The cables associated with the anode bed are the most anodic part of the impressed current system. The impressed current anode material is formulated for low consumption rates — copper wire is not. Any damage to cable insulation in an impressed current system can cause a relatively large amount of current to discharge to earth from a small area. Rapid corrosion leading to cable failure follows.

The negative (−) cable, by contrast, connects to the pipeline. The pipeline is operating at a cathodic (protected) potential. The negative cable shares that environment. It corrodes much more slowly, if at all.

Start with the positive leg.

You know the problem is in the positive circuit. Now you need to narrow down the location before anyone picks up a shovel.

A standard above-ground cable locator (the same kind used to locate buried pipelines) works well here. Connect the transmitter to the positive cable at the rectifier terminal or a nearby junction box, and walk the route. Above the cable, you'll receive a signal as long as the conductor is continuous and carrying the transmitted frequency.

Peabody's Control of Pipeline Corrosion describes this directly for ground bed maintenance: "When an increase in resistance is found, a pipe-cable locator can be used to find the problem... If there is a header cable break along the line of anodes, the signal will drop to essentially zero in the vicinity of the break." (Chapter 13)

One important caveat: if the locator shows a continuous cable signal throughout the bed length, but you still have high resistance or low output, the issue may be failed anodes rather than a cable break. A broken cable kills everything downstream; failed anodes affect only those positions. The distinction matters for deciding where and how much to excavate.

A copper-copper sulfate reference electrode (CSE) survey is a useful secondary technique, but the right approach depends on the type of ground bed you're working with.

For remote conventional anode beds (the bed is located away from the pipeline, connected by a long cable run): walk the cable route above ground with your reference cell on the surface. Peabody describes this as an over-the-line potential profile: with the rectifier energized, move the CSE in two to three foot increments along the line of anodes. The potential profile will show an electro-positive potential peak at each working anode. Where the cable has failed, the anodes beyond the break go cold. No current output, no positive gradient peak. The absence of a peak indicates either a failed anode or a break that's taken the anodes in that section offline.

For distributed anode beds running alongside a pipeline: the anodes are spread along the pipeline corridor, so walking above the cable route is less practical. Instead, walk the pipeline itself and take pipe-to-soil potential readings at regular intervals. Where the protection level drops off — where readings go from protective to marginal — you're past the break. The anodes serving that section are no longer outputting current. The break is somewhere between your last good reading and where the potentials start to fall.

Cable locator for any system where you can follow a defined cable path. Reference cell survey when the locator isn't practical or you need to confirm the break zone before committing to an excavation. On complex systems, use both.

You've narrowed down the location. Time to open the ground.

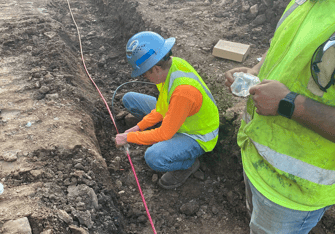

If the cable is shallow (and distribution cables along pipeline R/W often are) start with a hand shovel. This is not the place to lead with an excavator. There may be multiple cable runs in the area, and a machine bucket can do more damage in one pass than you're trying to repair. Hand-dig carefully in the suspected zone, exposing the cable without cutting it further.

If the cable is deeper, or you're working in a station yard with significant cover, a small excavator is appropriate. Mark the estimated break zone, protect the area, and work carefully. Know what else is in the ground before you dig.

Once you've exposed the cable, extend the excavation in both directions past the obvious damage point. Cable that has been electrically burning through over time may have compromised insulation for several feet on either side of where the conductor finally failed. The visible break may be the end of a longer problem.

Before you cut anything, take a voltage reading at the excavation. Connect your meter positive lead to the cable conductor (through the insulation nick or damage, or at a clean cut), and your negative lead to a CSE reference cell in the soil nearby.

If you're on the rectifier side of the break (between the rectifier and the break), you'll read a positive voltage — current is still flowing to this point. If you're on the anode bed side (beyond the break), you'll read near-zero or the natural soil potential — no current is reaching this section.

This confirmation tells you which direction to trace if the first excavation doesn't find the break. Dig toward wherever the voltage disappears.

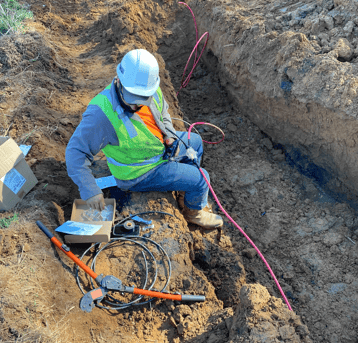

You've found the break. Now cut back the cable beyond the damaged section in both directions until you reach clean conductor and intact insulation. Don't splice into damaged cable, you're just creating the next failure point.

The replacement section needs to be at least the same wire gauge as the original. Go larger if there's any question. Never go smaller. Undersizing the replacement section adds resistance to the circuit and may limit the system's ability to reach its target output after repair. If the original cable spec isn't documented, match what you have or go up one size.

Before any encapsulation goes on, you need to physically join the two conductors. Strip back 1–2 inches of insulation on each cable end, bring the conductors together, and secure them with a heavy-duty copper crimp connector rated for the cable gauge. Use a ratchet-style or hydraulic crimping tool to fully compress the connector. A loose or partial crimp creates a resistance point at the splice and a future failure. Get the crimp right before you reach for the encapsulation kit.

Two options are common in the field:

3M Scotchcast epoxy splice kits (or equivalent two-part epoxy systems) are the field standard for buried CP cable repairs. The epoxy is poured into a mold placed around the crimped splice, fully encapsulating the connector and a length of conductor on both sides. It provides complete electrical insulation and moisture protection when mixed and applied correctly. Clean and abrade the cable insulation before pouring, follow the manufacturer's instructions, and don't backfill until the epoxy is fully hardened.

Dryconn Visilock connectors (or equivalent inline splice connectors) are faster to install and provide a clear visual indicator of proper seating. They work for this application. The qualifier is that they need to be fully sealed and adequately protected for burial. The standard in-line connector alone isn't sufficient protection for a permanently buried positive cable splice.

This is the step that determines whether you're back in this same hole in twelve months.

The positive leg operates at an anodic potential relative to the surrounding soil. Any moisture that reaches the conductor at the splice will start the same electrochemical process that caused the original failure. Splice insulation and cable insulation repair must be absolutely waterproof; otherwise, current can discharge to the electrolyte and cable failure will occur.

Tape and heat shrink are not adequate long-term protection for a buried positive cable splice. Use a poured two-part epoxy encapsulation kit designed for permanent burial.

A splice that's properly crimped and properly encapsulated will outlast the cable on either side of it. A splice that's sealed with electrical tape will fail.

Backfill carefully, compacting to prevent cable movement and future damage. Then verify the system.

Return to the rectifier and record the output voltage and current. Compare to your historical records. Current should be back up to normal operating levels. If it's still low, you may have a second break downstream, a high-resistance connection at the splice, or an anode bed that has deteriorated.

Walk the test stations along the protected structure and take pipe-to-soil potential readings. They should return to the levels recorded before the outage. Where they don't, those sections need attention. Corrosion activity continues during CP outages, and localized damage can accumulate even over weeks.

Document everything: date, GPS or station location of the break, depth, length of cable replaced, wire gauge, splice type used, pre-repair and post-repair rectifier readings, and post-repair pipe-to-soil potentials. The next person working on this system will need those records.

Cable breaks aren't random. They concentrate in specific situations.

Distributed anode beds along pipeline rights-of-way are high-exposure. Multiple anodes connected by a distribution cable running parallel to or crossing the pipeline corridor. Third-party excavation is the most common cause: a contractor hits the cable at a crossing, a utility crew digs through it, a farmer's equipment reaches the depth. A single break in the distribution cable takes out all the anodes downstream.

Remote conventional shallow anode beds are connected to the structure by a long cable run across varied terrain. These systems are sometimes older, and the original cable insulation may have degraded over decades. Damage from past work in the area is common. The cable route may not be fully documented. Peabody notes that construction activity near a ground bed warrants staking and marking the cable route specifically to prevent inadvertent damage.

Station and compressor yard systems are high-activity environments with a lot of subsurface infrastructure in a confined area. Drainage lines, other utilities, equipment pads, and repeated excavation for maintenance create ongoing exposure. Stations often have multiple CP circuits and multiple cable runs in close proximity. Before you dig, know which circuit is affected, which cable belongs to it, and what else is in the ground.

In every case: if the rectifier shows voltage but no current, start with the positive leg. Trace it systematically. Confirm before you cut. Protect the splice. Verify the repair.
