Corrosion remains one of the most persistent challenges in maintaining the integrity of metal structures across various industries. Whether it's buried pipelines transporting essential resources, storage tanks holding critical materials, or offshore platforms enduring harsh marine environments, the gradual degradation caused by corrosion can lead to structural failures, operational disruptions, and significant economic burdens. Industry reports consistently highlight the immense costs associated with corrosion, underscoring the need for advanced mitigation strategies that extend asset lifespan and ensure reliability.

Among the proven techniques for combating corrosion, cathodic protection stands out as an electrochemical approach that effectively halts the destructive process. Impressed Current Cathodic Protection (ICCP) systems, in particular, offer a powerful and adaptable solution. By utilizing an external power source to deliver a controlled current, ICCP transforms the protected structure into a cathode, preventing oxidative reactions that drive corrosion. This method is especially valuable for large scale or complex assets where other forms of protection may not suffice.

This guide dives into the intricacies of ICCP systems, from their underlying principles to practical implementation and maintenance. Designed for corrosion technicians and professionals in the field, it aims to provide a thorough understanding to support effective system deployment and management. By exploring the key elements of ICCP, readers will gain insights into optimizing protection for diverse applications, ultimately contributing to safer and more efficient operations.

To fully grasp how ICCP systems function, it's essential to start with the basics of corrosion itself. Corrosion is fundamentally an electrochemical process where metals return to their more stable, oxidized states through interaction with their environment. This occurs through the formation of an electrochemical cell on the metal surface, consisting of four primary elements: an anode, a cathode, an electrolyte, and a metallic path.

At the anode, oxidation takes place, releasing metal ions and electrons. For instance, iron oxidizing to form Fe²⁺ ions and freeing electrons. These electrons travel through the metal to the cathode, where reduction reactions consume them, such as oxygen combining with water to produce hydroxide ions. The electrolyte, which could be soil, seawater, or even humid air, enables the movement of ions between the anode and cathode, completing the circuit. The metallic path facilitates electron flow, perpetuating the cycle.

The result is material loss at the anode, manifesting as pitting, cracking, or uniform thinning. Environmental factors exacerbate this: higher oxygen concentrations accelerate reactions, acidic pH levels promote dissolution, elevated temperatures increase reaction rates, and microbial influences can create aggressive localized conditions. In buried or submerged settings, these variables often intensify, making unprotected structures particularly vulnerable.

ICCP intervenes by supplying an external source of electrons, effectively making the entire structure the cathode. This shifts the electrochemical potential negatively, suppressing anodic activity and redirecting corrosion to specially designed anodes. Understanding this foundation is crucial for technicians, as it informs the strategic application of ICCP to counteract specific corrosion drivers in real-world scenarios.

ICCP operates on the principle of impressing a direct current onto the protected structure using an external power source, overriding the natural corrosion currents. Unlike galvanic anodic protection, which relies on the potential difference between dissimilar metals, ICCP employs a rectifier to convert alternating current (AC) to direct current (DC), allowing for precise control over voltage and amperage.

The core mechanism involves connecting the structure to the negative terminal of the rectifier, positioning it as the cathode, while anodes are linked to the positive terminal and placed in the surrounding electrolyte. Current flows from the anodes through the electrolyte to the structure, polarizing it to a protective potential. Commonly -0.85 volts relative to a copper/copper sulfate reference electrode for steel in aerobic environments.

This polarization ensures that reduction reactions dominate on the structure's surface, preventing metal ion release. The external power source provides the necessary driving force, often up to 50 volts or more, to achieve high current outputs suitable for extensive coverage. Technicians can adjust the system to respond to variables like electrolyte resistivity or coating wear, maintaining optimal protection.

A key aspect is achieving uniform current distribution to avoid under, or over, protection. Over protection can lead to issues like hydrogen embrittlement in high strength steels or coating disbondment, while under protection leaves areas susceptible to corrosion. By monitoring potentials and fine tuning outputs, ICCP ensures comprehensive safeguarding, making it a versatile tool for challenging environments.

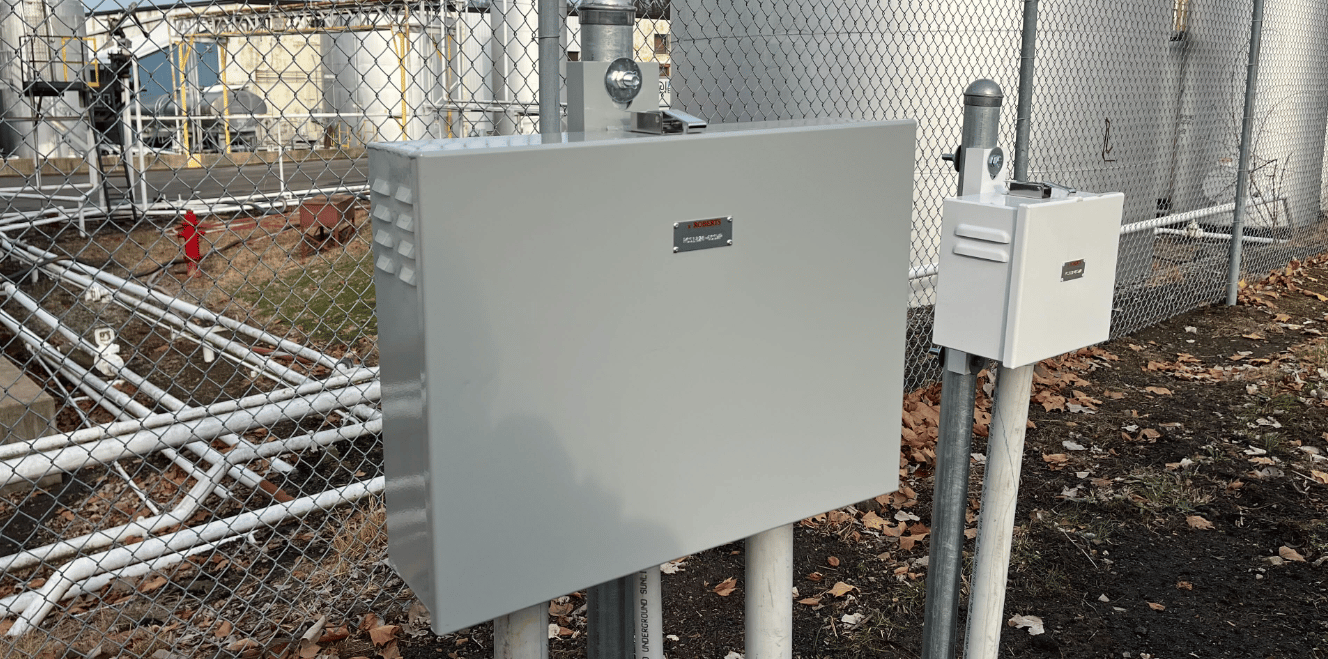

An ICCP system is a combination of interconnected components, each contributing to the delivery and regulation of protective current. At the center is the power source, typically a transformer rectifier unit (TRU) that converts AC to adjustable DC. These units come in various forms; air-cooled for standard applications, oil-immersed for harsh conditions, or even solar-powered for remote locations; ensuring adaptability.

Anodes form the next critical element, serving as the points where current is discharged into the electrolyte. These are made from inert or semi-inert materials to minimize consumption, with configurations tailored to the environment. Cabling and connections provide low resistance pathways, often insulated to prevent shorts and equipped with test stations for diagnostics.

Backfill materials, such as coke breeze, surround groundbed anodes to lower resistance and facilitate gas venting, enhancing efficiency.

Control and monitoring units integrate automation, allowing remote adjustments and data logging. These may include remote monitoring units (RMUs) that alert to anomalies, ensuring proactive management. Together, these components create a robust circuit, with the electrolyte closing the ionic loop, enabling technicians to maintain precise control over corrosion protection.

Selecting the appropriate anodes is pivotal to ICCP success, as they directly influence system longevity, efficiency, and cost. Anodes must withstand the electrolyte while delivering consistent current without rapid degradation. Common types include:

Anodes are available in shapes such as rods, tubes, or ribbons, often installed in arrays or groundbeds. Standards from organizations like NACE/AMPP guide selection, emphasizing factors like current requirements and environmental compatibility to optimize performance.

Designing an ICCP system requires planning to ensure effective coverage. It begins with assessing current requirements, calculated from the structure's surface area, coating efficiency, and electrolyte properties. Typically ranging from 1-20 mA/m² for coated steel.

Anode configuration follows, determining type, quantity, and placement to achieve uniform distribution. The rectifier is sized with a 20-50% margin to accommodate future changes, while reference electrodes can be positioned for interference free readings.

Installation involves site preparation: excavating for groundbeds (vertical for deep wells in high-resistivity soils, horizontal for shallow setups), placing anodes with backfill, and securing connections. The rectifier is mounted, controls integrated, and the system commissioned through initial energization and potential verification.

Technicians must adhere to safety codes, ensuring proper grounding and insulation. Post-installation testing confirms compliance with protection criteria, setting the stage for long-term operation.

ICCP's scalability makes it indispensable across sectors facing corrosion challenges. In pipelines, it protects extensive buried networks from varying soil conditions, often using distributed anodes for uniform coverage. Storage tanks benefit from safeguarding tank bottoms against soil side corrosion, extending service life.

Offshore structures, including platforms and wind farms, rely on ICCP to combat seawater aggression, with MMO anodes providing high output protection for risers and subsea equipment. Marine vessels employ hull-mounted systems to maintain integrity during voyages.

Infrastructure like bridges uses ICCP to protect embedded steel in concrete, countering chloride induced corrosion. Water treatment facilities apply it to tanks and pipes, preventing failures in corrosive fluids.

ICCP thrives in high resistivity or uncoated environments, offering tailored solutions where passive methods are inadequate.

ICCP offers distinct advantages: high current output for large structures, adjustability to environmental shifts, extended anode life minimizing replacements, and remote monitoring for efficiency gains. These features enhance reliability in dynamic conditions.

However, limitations include higher initial costs, dependency on power supplies, maintenance needs, and risks of stray current interference with adjacent structures. Overprotection can cause secondary issues, requiring oversight.

Compared to other methods, ICCP's controllability suits expansive applications, though it demands more technical expertise.

Several variables impact ICCP performance. Electrolyte resistivity affects current flow Low resistivity facilitates distribution, while high demands more anodes or power. Coatings dramatically reduce current needs, often by over 90%, but their degradation necessitates adjustments.

Temperature and pH influence reactions, with warmer, acidic conditions accelerating corrosion. Stray currents from external sources can disrupt potentials, while structure geometry complicates uniform protection in irregular shapes.

Monitoring these factors through surveys allows technicians to refine systems, ensuring sustained efficacy.

Sustained ICCP effectiveness hinges on monitoring and maintenance. Annual potential surveys using reference electrodes verify protection levels across the structure. Bi-monthly rectifier checks log voltage and current, identifying deviations.

Anode assessments evaluate output and wear, with replacements planned every 20-50 years. RMUs enable real time data analysis, facilitating predictive maintenance.

Routine tasks include repairing components, adjusting for changes, and complying with standards. This proactive approach minimizes downtime and optimizes protection.

Impressed Current Cathodic Protection systems represent a cornerstone in the fight against corrosion, offering a controlled, electrochemical shield for vital assets. By integrating external power with durable components, ICCP adapts to diverse challenges, ensuring longevity and operational integrity.

For corrosion technicians, mastering ICCP, from design to maintenance, empowers informed decision making, fostering resilient infrastructure.
