How DCVG Works: Detecting Pipeline Coating Defects with Direct Current Voltage Gradient Surveys

Introduction

Pipelines serve as conduits for transporting energy resources across extensive networks, buried beneath soil or submerged in water. These assets are exposed to corrosion that can undermine their structural stability, resulting in leaks, environmental incidents, and significant operational disruptions. The protective coating on a pipeline acts as the primary barrier against this threat, shielding the metal from corrosive elements. However, defects in this coating (referred to as holidays) can emerge from construction mishaps, environmental stresses, or gradual wear, creating pathways for corrosion to begin.

Identifying these holidays is important for pipeline integrity and extending service life. Direct Current Voltage Gradient (DCVG) surveys represent a non-destructive technique for locating and evaluating such defects. By utilizing direct current signals, DCVG not only pinpoints holidays but also assesses their potential for active corrosion, providing actionable data for maintenance strategies. This method is particularly integral to External Corrosion Direct Assessment (ECDA) protocols, where it functions as a key indirect inspection tool to inform subsequent direct examinations.

Why DCVG is a Cornerstone Among Inspection Techniques

DCVG sets itself apart through its capacity to classify defect severity and corrosion activity, offering more than just location. It uses the pipeline's existing cathodic protection (CP) system, making it practical for protected assets. This capability is invaluable in environments where understanding the corrosion risk is as important as finding the defect itself.

Developing Proficiency in DCVG Surveys

This article offers a comprehensive overview of DCVG, encompassing its core principles, operational mechanics, equipment, procedural steps, data analysis, strengths and constraints, practical uses, and optimization strategies. Tailored for corrosion technicians, engineers, and integrity managers, it aims to build the expertise needed to deploy DCVG effectively, enhancing pipeline safety and reliability.

The Fundamentals: Pipeline Coatings and Electrical Survey Principles

A solid understanding of DCVG requires foundational knowledge of pipeline protection and the electrical indicators of coating vulnerabilities.

The Function of Protective Coatings in Mitigating Corrosion

Newer pipelines feature advanced coatings such as fusion bonded epoxy, engineered to electrically insulate the steel from the electrolyte environment. This insulation breaks the electrochemical circuit necessary for corrosion. Nonetheless, coatings can fail at points of impact, abrasion, or aging, forming holidays that expose the substrate and corrosion can begin.

The Electrochemical Dynamics at Coating Holidays

At a holiday, corrosion happens by anodic dissolution of the metal and cathodic reduction processes. In cathodically protected pipelines, external current can mitigate this, but undetected defects can lead to localized problems like pitting or stress corrosion cracking. DCVG leverages these dynamics by detecting the electrical signatures of current flow at holidays.

Core Concepts of Electrical Detection for Holidays

Electrical surveys apply a signal to the pipeline, which escapes at defects, generating measurable voltage gradients in the soil. DCVG uses a pulsed DC signal to create these gradients, allowing for detection and characterization. This DC approach provides signal interpretation, especially for assessing the corrosion potential.

DCVG Explained: The Science and Mechanism

Direct Current Voltage Gradient (DCVG) is a close interval survey method that employs interrupted DC signals to identify and evaluate coating defects.

How DCVG Identifies and Characterizes Defects with DC Signals

DCVG involves interrupting the pipeline's CP rectifiers to produce an ON/OFF DC signal (3 seconds ON, 1 second OFF). During the OFF phase, the residual voltage gradients from the defect are measured. A technician uses a voltmeter connected to two reference electrodes spaced apart on the ground. As the survey progresses along the pipeline right-of-way, an increasing gradient indicates proximity to a holiday. The defect center is marked where the gradient direction reverses, showing a polarity shift.

The technique quantifies defect severity through the %IR drop, calculated as (ΔV / Pipe-to-Soil OFF Potential) × 100, where ΔV is the measured gradient. Higher %IR values (>50%) suggest severe defects, while lower values indicate minor or protected holidays.

To size the defect:

  1. Measure the voltage gradient at the defect (ΔV_defect), which is the sum of the voltage gradients to and from the defect center. This is done by performing a lateral profile, moving the electrodes perpendicular to the pipeline to locate the center of the defect and record the maximum gradient.

  2. Measure the total pipe-to-soil potential difference (V_total) at the defect during the OFF cycle.

  3. Calculate the percentage IR drop (%IR) using the formula: %IR = (ΔV_defect / V_total) × 100

  4. Classify the defect severity based on the %IR value, according to NACE SP0502:

  • Minor defect: %IR < 35% (monitor)

  • Moderate defect: %IR between 35% and 50% (repair recommended)

  • Severe defect: %IR > 50% (immediate repair required)

To classify the defect:

  1. Measure the direction and magnitude of the DC voltage gradient at the defect using two matched copper-copper sulfate reference electrodes (CSEs) placed in the soil near the defect.

  2. Observe the polarity of the voltage gradient (voltmeter needle deflection or digital meter direction indicator):

  • If the voltage gradient indicates current flowing from the pipeline into the soil at the defect location, the defect is anodic. This means the defect is a site where corrosion current is leaking out, and metal loss is occurring.

  • If the voltage gradient indicates current flowing onto the pipeline at the defect location, the defect is cathodic. This means the defect is receiving protective current and is not actively corroding.

  1. The direction of the meter needle deflection or digital indicator points toward the electrode closest to the defect. As the surveyor moves past the defect, the polarity of the voltage gradient reverses, allowing precise localization of the defect center.

  2. The magnitude of the voltage gradient (%IR drop) combined with the polarity helps classify the defect severity and corrosion activity.

This allows classification as anodic (corroding) or cathodic (protected), providing corrosion risk insights.

Soil resistivity influences the gradient spread: low resistivity broadens it for easier detection over distance, while high resistivity sharpens it for precision in arid or rocky areas.

Key Components of a DCVG System

  • Interrupter: Synchronizes CP rectifier cycling, often GPS sync'd for multi rectifier systems.

  • Voltmeter/Receiver: High-sensitivity device displaying voltage in millivolts, with polarity indicators.

  • Reference Electrodes: Copper/copper sulfate probes for ground contact.

  • Data Logger: Records measurements with GPS for mapping and reporting.

Guidelines from AMPP (formerly NACE) standards, such as SP0502, ensure equipment calibration and survey integrity.

Step-by-Step Procedure for Conducting a DCVG Survey

Executing a DCVG survey requires planning and protocols for repeatable outcomes.

Pre-Survey Preparation and Environmental Evaluation

Review pipeline maps, CP data, and prior inspections. Identify interference sources like stray currents or adjacent structures. Secure access permissions and calibrate instruments. Coordinate rectifier interruptions to minimize operational impact.

Configuring the Interrupter and Applying the DC Signal

Install synchronized interrupters on the rectifiers. Set cycle times and verify (document) correct interruption across the survey area. Measure baseline pipe-to-soil potentials to confirm signal strength.

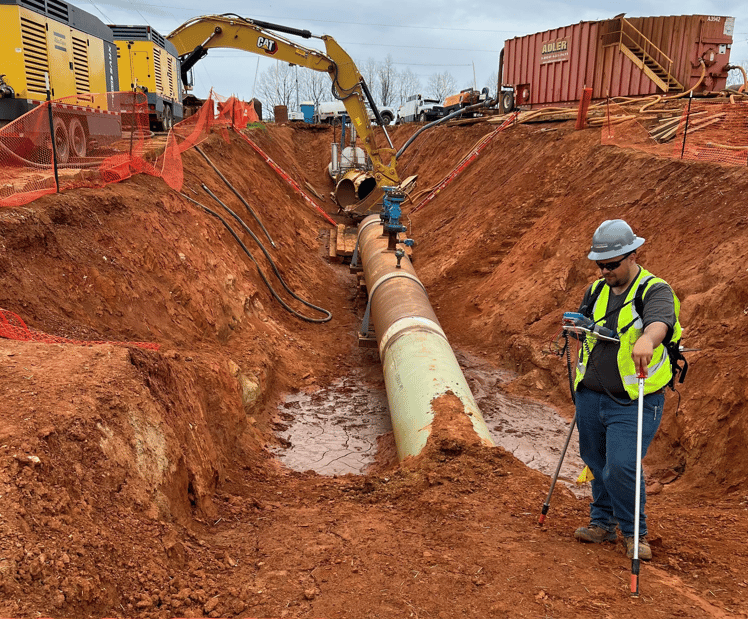

Conducting the Field Walk: Measurement Strategies

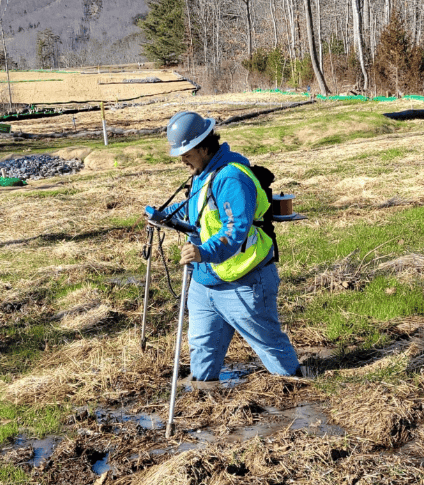

The technician traverses the right-of-way, placing probes perpendicular to the pipeline every 3 - 10 feet. Monitor for gradient increases; refine spacing near anomalies to locate the reversal point. Note %IR, location, and environmental notes. Use close interval measurements for complex areas.

Post-Survey Data Compilation and Preliminary Review

Organize readings into spreadsheets or software for %IR calculations and defect ranking. Generate maps highlighting high priority sites for excavation planning.

Interpreting DCVG Data: Turning Measurements into Strategic Decisions

Effective analysis is key for prioritized repair recommendations. This section explores data interpretation, equipping practitioners with the tools to derive meaningful insights from field measurements.

Decoding Millivolt Readings and %IR Calculations

Millivolt gradients reflect defect proximity and size; the %IR metric normalizes this against the local CP level. Classifications often include: minor (<35% IR), moderate (35-50% IR), and severe (>50% IR). Anodic indications (positive gradients) signal active corrosion risks, while cathodic responses suggest adequate protection. For example, in a pipeline with a -1.2 V OFF potential, a 300 mV gradient yields a 25% IR, indicating a minor defect.

Advanced analysis involves plotting gradients along the pipeline to identify clusters, which may point to systemic issues like coating disbondment. Software tools can automate %IR calculations, incorporating variables like electrode spacing to refine accuracy. Understanding the logarithmic nature of signal decay (stronger near the defect) helps in estimating holiday dimensions, with larger defects producing broader, more intense gradients.

Variables Affecting Data Reliability

Pipe depth, soil resistivity, and CP current density influence readings. Deeper pipelines (over 10 feet) attenuate signals, requiring compensation through higher interruption cycles or adjusted thresholds. Soil resistivity variations: lower in clay (under 10,000 ohm-cm) versus high in sand (over 50,000 ohm-cm) affect gradient profiles; low resistivity diffuses signals, potentially underestimating small holidays, while high resistivity enhances detection but may cause overestimation in arid or rocky zones.

Seasonal factors, such as moisture from rainfall, can temporarily lower resistivity, altering readings. It's always better to survey in consistent conditions to yield better comparability. Interference from external DC sources, like electric railways or adjacent CP systems, can introduce noise, skewing polarity and %IR values. To counter this, use waveform analysis or conduct surveys during low interference periods.

Avoiding Common Errors and Ensuring Quality Assurance

Misinterpretations arise from unsynchronized interruptions, leading to inconsistent OFF cycles, or from reference cell mismatch or contamination, which affects contact resistance. False positives may occur near anodes or bonds, mimicking defects; cross referencing with pipeline schematics helps differentiate. Inconsistent walking patterns, or leaving the pipeline centerline, can miss small gradients.

For quality assurance, use a validation protocol: correlate DCVG findings with Close Interval Potential Surveys (CIS) to verify CP coverage, or use Pipeline Current Mapper (PCM) for current attenuation insights. Verification excavation of a defect can provide size verification or comparison. Regular technician audits and adherence to AMPP standards ensure consistent, defensible results.

Advantages and Limitations of DCVG Surveys

DCVG provides unique benefits but requires consideration of its boundaries.

Where DCVG Shines: Core Strengths and Preferred Contexts

  • Corrosion Risk Assessment: Distinguishes active from passive defects for targeted repairs, reducing unnecessary excavations.

  • Signal Durability: Effective in diverse soils, including under disbonded coatings where other methods struggle.

  • Cost Effective Prioritization: Reduces unnecessary digs by focusing on high risk sites, optimizing resource allocation.

  • Integration with CP: Utilizes existing systems without additional generators, streamlining operations.

Suited for risk based integrity programs on protected pipelines in varied terrains, such as coastal or industrial areas prone to aggressive corrosion. Its ability to assess anodic activity makes it ideal for ECDA pre-assessments, guiding direct examinations to critical zones.

Challenges and Strategies to Overcome Them

  • Time Intensity: Slower due to precise measurements and interruption setups; optimize with trained teams and segmented surveys to cover 1 - 3 mi daily.

  • Sensitivity Limits: May overlook tiny defects (<1 cm²) in high resistivity soils; pair with Alternating Current Voltage Gradient (ACVG) for comprehensive coverage, as ACVG excels in location while DCVG adds risk evaluation.

  • Interference Sensitivity: DC stray currents from nearby infrastructure complicate signals; use isolation techniques like current interrupters or conduct differential measurements.

  • Operational Dependencies: Requires CP interruption, alternatives include portable DC sources for unprotected segments.

Environmental constraints, like frozen ground reducing probe penetration, can be mitigated with delayed scheduling.

Applications of DCVG in Pipeline Integrity Management

DCVG is widely applied in ECDA and ongoing monitoring, adapting to various pipeline scenarios.

  • Buried Transmission Lines: Assesses long segments for oil/gas transport, identifying holidays from soil movement or third-party intrusions.

  • Urban and Industrial Settings: Navigates interference for distribution networks, pinpointing defects amid complex infrastructure.

  • Synergistic Use: Combined with In-Line Inspection (ILI) for correlating external holidays with other issues, or soil resistivity measurements for environmental context.

Factors Influencing DCVG Effectiveness

Several elements shape DCVG outcomes, necessitating tailored survey designs.

  • Environmental Parameters: Resistivity, moisture, and temperature modulate signal propagation; for instance, high moisture lowers resistivity, broadening gradients but improving long range detection.

  • Pipeline Attributes: Burial depth affects attenuation (shallower lines yield clearer signals). Coating condition and CP effectiveness influence %IR accuracy; under-protected areas may show inflated anodic responses.

  • Technician Proficiency: Accurate probe placement, real time adjustments for interference, and interpretive skills are vital. Experienced surveyors can produce efficient and accurate results.

Additional influences include segment length and regulatory requirements, which may mandate combined techniques for compliance.

Conclusion: Advancing Pipeline Protection Through DCVG

Direct Current Voltage Gradient surveys embody a strategic, insightful approach to combating pipeline corrosion. By delivering precise locations and corrosion risk evaluations, DCVG empowers operators to implement focused interventions that enhance safety, reduce costs, and prolong infrastructure durability. In an era of heightened regulatory scrutiny and operational demands, proficiency in DCVG fosters resilient pipeline management.
