Introduction
Every corrosion technician knows the -850 mV criterion. It's the number that gets written on data sheets, reviewed by supervisors, and cited in compliance reports. But a potential reading tells you what's happening at a specific moment in time. Current density tells you something different: it tells you how hard the system is working to maintain that protection, and whether the work is being distributed where it actually needs to go.
Current density is one of the more underappreciated tools in the field technician's kit. It's not glamorous. It requires more than just laying a reference cell on the ground. But the information it provides; about coating condition, CP adequacy, overprotection risk, and AC interference; is information you simply cannot get from potential surveys alone.
This article covers what current density is, why field technicians should care about measuring it, how to do it in practice, and how to think about both the DC and AC sides of the picture.
What Is Current Density?
Current density is the amount of electric current flowing per unit area of metal surface. It is expressed as current (amperes) divided by surface area (square meters or square centimeters):
i = I / A
Where:
i = current density (A/m² or mA/m² or µA/cm²)
I = total current (amperes)
A = exposed metal surface area (m² or cm²)
The unit matters because current density connects the electrical measurement you can take at a rectifier or test station to the actual electrochemical conditions at the metal surface. Fifty milliamps flowing to a pipeline with a few small holidays is a very different situation from fifty milliamps flowing to a large bare section of steel. Same current, completely different current density, completely different corrosion risk.
In cathodic protection, current density is the number that actually describes the protection level at the metal surface. Potential is what you measure to verify you've reached it.
Why Would a Field Technician Want to Measure It?
This is the right question, and it deserves a direct answer.
Verifying That Protection Is Actually Getting Where It Needs To Go
A rectifier showing 2 amps output with adequate ON potentials at test stations doesn't guarantee uniform protection across the entire pipeline. Current distributes based on resistance, coating condition, and soil environment. Knowing the current density at a specific location (particularly at a simulated coating holiday using a coupon) tells you whether the current is actually arriving at bare metal defects in meaningful quantities, not just flowing to the nearest, easiest path.
Trending Coating Condition Over Time
As a coating ages, its holidays grow larger and more numerous. More bare steel means more current demand; and as total current increases or spreads over more area, the current density at any individual defect may actually decrease. Tracking current density over time, measured at consistent coupon locations, gives you one of the clearest early signals of coating degradation available. It's a trend you can act on before potentials start dropping.
Avoiding Overprotection
More current is not always better. When DC current density at the steel surface becomes excessive; particularly at disbonded coating areas; it can drive hydrogen evolution reactions that accelerate disbondment and, in susceptible steels, contribute to hydrogen embrittlement. Understanding current density puts you in a position to optimize, not just maximize.
Assessing AC Corrosion Risk
Pipelines running parallel to high-voltage AC power lines or near AC railways can experience induced AC current. And the damage mechanism is different from anything a potential survey will detect. AC current density at coating holidays is the critical metric for evaluating this risk. More on this later.
Calculating Current Density for a Buried Pipeline
Before you can evaluate current density in a meaningful way, you need to know the surface area receiving that current. For a cylindrical pipeline:
A = π × d × L
Where:
d = outer diameter (in compatible units)
L = pipeline length
Example — Bare Steel Pipeline
A bare 12-inch (0.305 m) outer diameter pipeline, 5,000 feet (1,524 m) long:
A = π × 0.305 m × 1,524 m = 1,461 m²
If your CP system is supplying 15 A, the average current density is: i = 15 A / 1,461 m² = 10.3 mA/m²
Example — Coated Pipeline with 5% Holidays
For a well-coated pipeline with only 5% holidays, the effective bare area is 73 m². The same 15 A now produces: i = 15 A / 73 m² = 205 mA/m²
Same total current. Radically different current density at the metal surface.

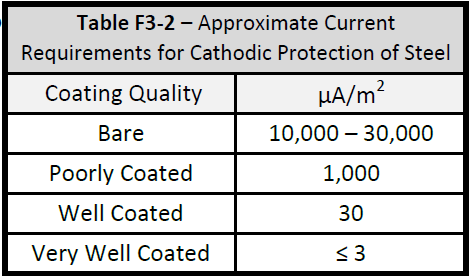

This is why coating condition is so critical to CP design and why current density calculations that don't account for actual coating quality are only approximations. Typical minimum protective current density values for steel in soil range from roughly 10 to 30 mA/m² for bare steel, and much higher at localized holidays on coated systems, depending on soil resistivity, temperature, and oxygen availability (last week's article).
"The current density at a holiday on a coated pipeline is far higher than average calculations suggest. The coating concentrates the current demand onto a small fraction of the total surface area. That's where corrosion lives — and that's exactly where you need adequate protection."
How to Measure DC Current Density in the Field
You cannot directly measure current density at a coating holiday on an in-service buried pipeline. What you can do is use external corrosion coupons to create a controlled, measurable example.
External Corrosion Coupons: The Practical Approach
A corrosion coupon is a small steel sample (typically 1 cm² to 10 cm² in area) made from the same material as the pipeline, buried in the same soil environment, and electrically connected to the pipeline at a test station. The coupon simulates a bare coating holiday and allows direct current measurement at a defined, known surface area.
How DC Current Density Is Measured with a Coupon
Install the coupon at the appropriate depth in undisturbed soil adjacent to the pipeline, with a reference electrode access tube positioned nearby. Connect the coupon lead to the pipeline through the test station.
Measure baseline current by connecting a calibrated shunt (or zero-resistance ammeter) in series between the coupon lead and the pipeline connection. The shunt reads the DC voltage and calculates current flowing between the coupon and the pipeline using Ohm's Law.
Calculate current density: Divide the measured current (mA) by the coupon's exposed area (cm² or m²). This gives you the DC current density at that simulated holiday location.
Measure IR-free potential: Momentarily disconnect the coupon from the pipeline while the CP system remains energized, and immediately measure the coupon potential to the nearby reference electrode. This instant-disconnect reading gives you the true polarized potential at the holiday (free of IR drop error) without needing to interrupt all CP sources across the system.
Document and trend: Record current density, coupon potential, and date. Repeat on a regular survey cycle. Declining current density over time typically indicates coating degradation — as holidays multiply and grow, the same protective current is shared across more bare area, reducing what arrives at the coupon. Declining current density may also point to reduced CP output from anode depletion or increasing circuit resistance. Rising current density, when coating condition is known to be stable, may reflect changes in rectifier output, improved anode contact, or a decrease in local soil resistivity.
What the Numbers Mean for DC
The DC current density reading tells you whether adequate protective current is reaching a simulated holiday at that location. Too low and the holiday may be underprotected; too high may indicate overprotection or that the coupon is positioned in an area of concentrated current flow. Compare against your system's design current density and against adjacent test points to build a picture of current distribution across the line.
"A coupon gives you something you can't get from a pipe-to-soil survey: a direct measurement of what's happening at a bare metal surface. The potential tells you the address. The current density tells you what's actually going on inside."
AC Current Density: A Different Problem, a Different Threshold
DC current density is about getting enough protective current to the steel surface. AC current density is about a completely different and potentially more dangerous threat.
How AC Causes Corrosion
Pipelines running in close proximity to high-voltage AC transmission lines or electrified railways can have AC current induced onto the pipe. At coating holidays (the same spots where CP current is concentrating) that AC current flows between the pipe and the soil electrolyte. The mechanism of corrosion is not the same as stray DC; it involves cyclic faradaic reactions that, under the right conditions, cause localized, aggressive pitting even when CP potentials appear to meet standard criteria.
The key point: a pipeline can have a compliant -850 mV (or more negative) instant-off potential and still be experiencing active AC-induced corrosion. Potential surveys alone will not catch this. Current density measurement will.
Why DC Criteria Doesn't Protect Against AC Corrosion
In AC-affected environments, the cathodic protection current can actually amplify the effects of AC by creating local alkalinity that accelerates iron dissolution at the holiday during the anodic half-cycle. This is one of the more counterintuitive findings of the last few decades in CP research. More cathodic protection is not always the answer when AC interference is present. Managing the DC-to-AC current density ratio matters.
Measuring AC Current Density
The approach is similar to DC, but with different instrumentation:
Use the same coupon installation setup (same test station access, same reference electrode tube).
Measure AC current flowing between the coupon and the pipeline using a true-RMS ammeter — standard DMMs that aren't true-RMS will give inaccurate readings in the presence of distorted waveforms.
Divide the AC current by the coupon area to get AC current density in A/m².
AC current density can also be estimated from measurements of AC pipe-to-soil voltage and calculations involving soil resistivity, but coupon measurements provide the most direct and reliable data.
Industry Thresholds for AC Current Density
These thresholds are referenced in ISO 18086 and AMPP guidance on AC corrosion. They are not absolute guarantees The DC-to-AC current density ratio and the local soil chemistry also influence actual corrosion rate. But they provide a practical framework for field assessment and decision-making.
When to Be Concerned About AC
Your pipeline runs within a few hundred feet of a high-voltage transmission line for an extended distance
You observe fluctuating or elevated AC pipe-to-soil voltage at test stations (measured with a true-RMS voltmeter)
You are seeing unexplained pitting corrosion on an otherwise well-protected pipeline
Putting It Together: Current Density in Your Survey Program
Current density measurement isn't something most operators are doing at every test station on every survey cycle. But there are specific situations where incorporating coupon-based current density monitoring adds significant value that potential surveys simply can't provide:
New pipeline segments where baseline coating condition and current distribution data are being established
Any segment with documented or suspected AC interference
Lines where coating condition is aging and trending data on current demand is useful for planning
Locations showing unexplained variability in pipe-to-soil potentials that isn't explained by rectifier output or survey timing
When you install a coupon and start collecting current density data at a location, you're creating a piece of continuous, objective evidence about what's happening at a simulated defect on your pipeline. Over time, that data tells a story that potential readings alone can't tell.
Summary & Key Takeaways
Current density (i = I/A) is the amount of protective current delivered per unit area of exposed metal surface. It connects the current your CP system outputs to the electrochemical reality at coating holidays.
Surface area drives everything. A coated pipeline concentrates current demand onto a small fraction of total pipe surface. Small holidays carry much higher current densities than average calculations suggest.
Measuring DC current density in the field is done using external corrosion coupons: small steel samples of known area, buried adjacent to the pipeline and connected through a test station. Measure current with a calibrated shunt, divide by coupon area. Simultaneously disconnecting the coupon gives you an IR-free polarized potential.
DC current density trending is one of the most useful tools for detecting coating degradation over time — before it shows up in potential surveys.
AC current density is the critical metric for AC corrosion risk — and it cannot be assessed from standard potential surveys. Use a true-RMS ammeter with coupon measurements. Thresholds: < 20 A/m² low risk, 20–100 A/m² medium risk, > 100 A/m² high risk.
AC corrosion can occur even when CP potentials meet criteria. High AC current density at holidays is an independent risk factor that must be evaluated separately.
Coupon-based current density monitoring is particularly valuable on aging lines, new installations establishing baselines, and any segment near AC transmission infrastructure.
Referenced Standards & Guidelines
AMPP SP0169 — Control of External Corrosion on Underground or Submerged Metallic Piping Systems
NACE SP0104 — The Use of Coupons for Cathodic Protection Monitoring Applications
AMPP TM0497 — Measurement Techniques Related to Criteria for Cathodic Protection on Underground or Submerged Metallic Piping Systems
ISO 18086 — Corrosion of Metals and Alloys — Determination of AC Corrosion — Protection Criteria
NACE SP0186 — Application of Cathodic Protection for External Surfaces of Steel Well Casings
49 CFR Part 192 — Transportation of Natural and Other Gas by Pipeline: Minimum Federal Safety Standards
