Introduction
In the world of corrosion control and pipeline integrity, microbiological testing has become an essential tool for diagnosing and managing internal corrosion threats, particularly microbiologically influenced corrosion (MIC). Recently, acronyms such as ATP, qPCR, and AMP have gained attention as advanced methods for detecting and quantifying microbial activity in oil and gas pipelines. For corrosion field technicians and integrity personnel, understanding these tests is important for making informed decisions about risk assessment, mitigation, and monitoring. This article explores the fundamentals of ATP, qPCR, and AMP testing, their practical applications, advantages, limitations, and how they integrate into corrosion control programs.
Understanding the Basics of ATP, qPCR, and AMP Testing
Adenosine Triphosphate (ATP) Testing ATP is a nucleotide composed of adenosine and three phosphate groups, serving as the primary energy currency in all living cells. When cells require energy, ATP breaks down to ADP or AMP, releasing usable energy. The presence of ATP in a sample indicates living, metabolically active microorganisms.
ATP microbiological testing uses bioluminescence technology, where a surface or fluid sample is swabbed or collected, treated to release the ATP from the cells, then reacted with luciferase/luciferin enzymes. This reaction emits light proportional to the ATP concentration, measured in Relative Light Units (RLU) by a luminometer. The test provides a rapid, semi-quantitative measure of total active biomass in the sample.
Quantitative Polymerase Chain Reaction (qPCR) qPCR is a molecular biology technique that amplifies and quantifies specific DNA sequences from microorganisms in a sample. It identifies the presence and abundance of particular microbial species or functional genes (e.g., sulfate-reducing bacteria) by targeting conserved regions such as the 16S rRNA gene. Unlike ATP testing, qPCR detects DNA from living, inactive, and dead cells. It counts only the microbial groups its primers target; a full inventory of the microbial community takes DNA sequencing, a separate lab test.
Adenosine Monophosphate (AMP) Testing AMP testing is a variant of ATP testing that also measures AMP. Metabolically more active cells generally have more ATP than AMP, so comparing the two can give added information on microbial activity, which may help in judging whether MIC control measures are working.
How These Tests Apply to Oil and Gas Pipelines
Role in Microbiologically Influenced Corrosion (MIC) Detection MIC is corrosion affected by the presence and activity of microorganisms, primarily those forming biofilms on pipeline surfaces. Since corrosion occurs at the metal interface, surface samples (biofilms, deposits) are more meaningful than bulk fluid samples. ATP testing provides rapid field screening of total active biomass, useful for immediate assessment of microbial activity. qPCR offers detailed identification and quantification of specific corrosive microbial groups, essential for targeted mitigation strategies.
Sampling and Field Testing Considerations
Samples for ATP testing must be processed quickly unless preserved, as ATP degrades rapidly after collection.
qPCR samples require careful preservation (cooling, chemical stabilizers) and laboratory processing but provide counts of specific microbial groups.
Surface swabs, liquids, solids, and pigging residues are typical sample types.
Consistency in sampling technique and preservation is critical for reliable trend analysis.
Step-by-Step Procedures for ATP and qPCR Testing

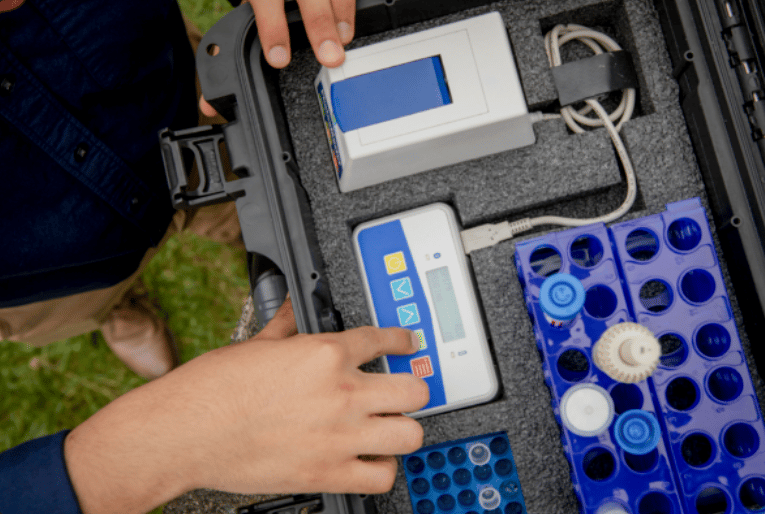

ATP Testing Procedure
Swab the pipeline surface or collect fluid sample to capture organic matter.
Process the sample with the kit's filters and lysis buffers, which help release the ATP from the cells, then combine it with the luciferase/luciferin reagent.
Use a luminometer to measure emitted light in RLUs.
Interpret results as an indicator of total active microbial biomass.
qPCR Testing Procedure
Collect samples (liquid, solid, or surface swabs) using sterile techniques.
Preserve samples immediately by refrigeration or chemical preservatives.
Transport samples to a laboratory with molecular microbiology capabilities.
Extract DNA using validated protocols minimizing contamination and degradation.
Amplify target DNA sequences using primers specific to microbial groups of interest.
Quantify DNA using fluorescence signals to determine microbial abundance.
Practical Advice & Common Pitfalls
Advantages of ATP Testing
Rapid results (minutes), enabling immediate field decisions.
Simple equipment suitable for field use.
Measures metabolically active biomass, relevant for corrosion risk.
Limitations of ATP Testing
Does not identify specific microbial species.
Measures total ATP, including ATP from harmless microorganisms.
Interference from hydrocarbons and chemicals common in oil and gas samples requires sample pre-processing.
Advantages of qPCR
High specificity and sensitivity for microbial identification.
Quantitative data on total and functional microbial populations.
Useful for trend analysis and evaluating mitigation effectiveness.
Limitations of qPCR
Requires laboratory facilities and technical expertise.
Detects DNA from dead cells, potentially overestimating active populations.
Sample degradation during transport can affect accuracy.
Best Practices
Use ATP testing for rapid screening and immediate operational decisions.
Employ qPCR to count specific microbial groups, such as SRB, and to back up ATP results.
Preserve samples properly to maintain integrity.
Combine microbiological data with corrosion and chemical parameters for comprehensive assessment.
Avoid interpreting bacterial presence alone as definitive MIC evidence; correlate with corrosion morphology and chemical indicators.
Summary Table: Microbiological Test Methods in Pipeline Corrosion
Test Method | Technology | Cells Detected | Application | Field or Lab | Quantitative or Qualitative |
ATP | Enzyme-based bioluminescence | Living, active biomass | Rapid microbial activity screening | Field/Lab | Semi-quantitative |
AMP | Enzyme-based bioluminescence | Living cells (ATP-to-AMP ratio) | Added information on metabolic activity | Field/Lab | Semi-quantitative |
qPCR | Molecular DNA amplification | Total DNA (live, dead, inactive) | Microbial identification and quantification | Lab | Quantitative |
Conclusion: Integrating ATP, qPCR, and AMP Testing for Effective Corrosion Control
Microbiological testing using ATP, qPCR, and AMP methods provides corrosion field technicians and integrity professionals with powerful tools to detect, quantify, and understand microbial populations influencing pipeline corrosion. ATP testing offers rapid, actionable insights in the field, while qPCR delivers counts of specific microbial groups, such as SRB, for targeted mitigation. AMP testing can add information on microbial activity by comparing ATP with AMP. Together, these methods complement traditional chemical and corrosion monitoring, enabling comprehensive risk assessment and informed decision-making. Proper sampling, preservation, and data interpretation aligned with standards such as NACE TM0212 and AMPP TM21465 ensure reliable results that enhance pipeline integrity management and corrosion mitigation strategies.
Referenced Standards
NACE TM0212-2012: Detection, Testing, and Evaluation of Microbiologically Influenced Corrosion on Internal Surfaces of Pipelines
NACE TM0194-2014: Field Monitoring of Bacterial Growth in Oil and Gas Systems
AMPP TM21465-2024: Molecular Microbiological Methods - Sample Handling and Laboratory Processing
