The integrity of a pipeline is the bedrock of safe and efficient energy transport. Buried or submerged, these critical assets face a constant, silent threat: corrosion. A minor coating defect can escalate into a significant structural failure, leading to environmental damage, operational downtime, and substantial financial loss. Protecting this infrastructure is not a passive activity; it requires a proactive strategy of inspection and maintenance. Choosing the right survey method to identify potential failures before they occur is one of the most critical decisions a pipeline operator can make.

External corrosion is the primary adversary of pipeline longevity. It begins at microscopic breaches in the protective coating, where the steel pipe is exposed to the surrounding soil or water. Without intervention, this localized corrosion can lead to leaks or catastrophic ruptures. An effective integrity management program relies on accurately identifying these coating defects, allowing for targeted repairs that prevent corrosion from taking hold.

Among the suite of available inspection technologies, Alternating Current Voltage Gradient(ACVG) and Direct Current Voltage Gradient (DCVG) surveys stand out as premier methods for evaluating the condition of a pipeline's external coating. Both techniques are non-intrusive, surface-based electrical surveys designed to pinpoint coating discontinuities. However, they operate on different principles and yield distinct types of data, making each suitable for different scenarios.

This guide provides a definitive comparison of ACVG and DCVG methodologies. We will delve into the fundamental principles of each technique, explore their respective advantages and limitations, and analyze the critical environmental and operational factors that should influence your choice. By the end, you will have a clear framework for selecting the optimal survey method to safeguard your specific pipeline assets.



At its core, an external corrosion survey is a method of "listening" for electrical signals that betray weaknesses in a pipeline's defenses. By understanding how these signals are generated and detected, operators can gain a precise map of potential trouble spots along their right-of-way.

A modern pipeline is shielded by a high-performance protective coating, which acts as the primary barrier against corrosive elements in the soil or water. This coating is designed to electrically isolate the steel pipe from its environment. However, no coating is perfect. Damage during installation, soil stress, third-party interference, or simple degradation overtime can create holidays, or discontinuities. These holidays become the focal points for corrosion, a vulnerability that electrical surveys are designed to exploit.

Both ACVG and DCVG surveys work by applying an electrical signal to the pipeline, typically through the existing cathodic protection (CP) system or a temporary power source. At any point where the protective coating is breached, the electrical current flows from the pipeline into the surrounding electrolyte (soil or water). This current flow creates a voltage gradient in the ground. Survey technicians walk the pipeline route, using sensitive voltmeters and probes to measure these gradients on the surface, effectively detecting the electrical "signature" of a coating defect.



The ACVG method uses a low-frequency alternating current (AC) signal to identify coating holidays. This technique is renowned for its sensitivity and ability to locate even very small defects with a high degree of precision.

In an ACVG survey, an AC signal is impressed onto the pipeline. A technician uses a specialized receiver with two earth-contact probes and a magnetometer. The receiver measures the strength of the AC voltage gradient between the two probes. As the technician approaches a coating defect, the gradient strength increases, peaking directly over the holiday. The magnetometer helps the technician stay directly over the pipeline, ensuring the accuracy of the location. The signal's characteristics can also provide an estimate of the defect's size.

ACVG's primary advantage is its exceptional sensitivity and accuracy in locating defects. Itis particularly effective at finding small or "pinhole" holidays that other methods might miss. The signal is less affected by extraneous DC sources, such as telluric currents or interference from other CP systems, making for a cleaner signal in certain environments. Itis often faster than DCVG, making it a cost-effective choice for long stretches of pipeline in relatively uncomplicated terrain.

Despite its sensitivity, the AC signal used in ACVG can be attenuated by certain soil conditions and is susceptible to interference from overhead power lines or other sources of AC electromagnetism. The signal can also capacitively couple to nearby metallic structures, potentially leading to false indications. Furthermore, ACVG primarily identifies the location and relative size of a defect; it does not inherently classify the corrosion activity at that location.



The DCVG method utilizes a direct current (DC) signal, typically by pulsing the pipeline's own cathodic protection system. This technique is valued for its ability to not only locate defects but also to characterize their corrosion significance.

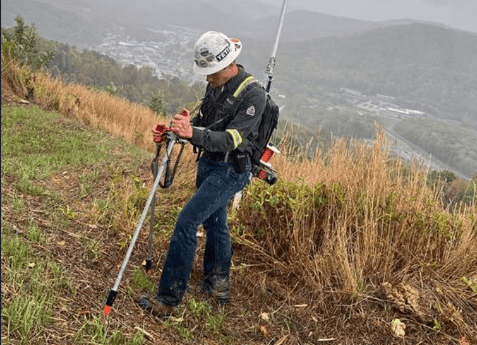

In a DCVG survey, the pipeline's CP rectifiers are interrupted, creating a pulsed "on-off" DC signal. A technician uses a sensitive voltmeter with two probes to measure the voltage gradients in the soil. As they approach a defect, the meter shows a distinct voltage gradient pointing toward the holiday. The center of the defect is located where the gradient polarity reverses. By analyzing the magnitude of the voltage drop (%IR), the technician can classify the defect's severity and determine if it is anodic (corroding) or cathodic (protected).

DCVG's key strength is its ability to differentiate between active corrosion sites and holidays that are still receiving adequate cathodic protection. This classification is invaluable for prioritizing repairs, allowing operators to focus resources on the most critical defects first. The DC signal is generally more robust and can penetrate through various soil types and even some disbonded coatings. It is the preferred method when the primary objective is to assess corrosion risk rather than simply cataloging all defects.

DCVG surveys can be more time-consuming than ACVG. The accuracy of the survey is highly dependent on a stable and well-interrupted DC signal, which can be challenging to achieve on complex pipeline networks. It can also be less sensitive to very small, high-resistance defects compared to ACVG. In areas with significant DC interference from sources like traction systems or other pipelines, isolating the survey signal can be difficult.



Collecting survey data is only half the battle. Transforming raw electrical measurements into actionable intelligence requires sophisticated analysis, a deep understanding of the underlying principles, and an awareness of potential pitfalls.

Accurate interpretation depends on a host of variables. Soil resistivity, the output of the CP system, the depth of the pipeline, and the size and shape of the coating defect all influence the measured voltage gradient. Experienced analysts use these variables in their computations to estimate defect severity and prioritize repairs. Failing to account for a key variable, such as a localized change in soil type, can lead to a mischaracterization of an anomaly.

The core of the analysis involves identifying and interpreting shifts in the voltage gradient. For DCVG, a large %IR drop indicates a significant defect that is drawing substantial protective current, highlighting it as a high-priority repair. For ACVG, a sharp, high-magnitude peak indicates a likely coating holiday. The data from either survey is used to create a "dig list" that guides excavation crews to the precise locations requiring visual inspection and repair of the protective coating.

Data can be misleading. An ACVG signal could be influenced by a nearby abandoned pipe, creating a false positive. A DCVG reading might be suppressed if the defect is located in dry, high-resistivity soil. Shielding from rock guards, disbonded coatings, or unknown structures can also mask or distort signals. This is why survey results should always be correlated with other data sources and reviewed by experienced corrosion professionals before committing to costly excavations.



Selecting the right survey technique is a strategic decision that balances technical capabilities, project objectives, and operational constraints. Following a structured framework ensures an informed and defensible choice.

First, evaluate the physical reality of your pipeline. Is it onshore in a simple right-of-way, or does it cross navigable rivers or venture into offshore waters? Is it coated with a concrete weight coating? The presence of CWC may immediately rule out both methods. The soil conditions, presence of interfering infrastructure, and general accessibility will heavily favor one technique over the other.

What is the primary goal? If the objective is to create a comprehensive inventory of every coating defect, no matter how small, for a baseline assessment, the high sensitivity of ACVG might be preferable. If the goal is to identify and prioritize only the most severe defects that pose an immediate corrosion threat to optimize a limited repair budget, DCVG's ability to classify corrosion activity is invaluable.

Consider the practical aspects of the survey. ACVG is often faster, which can translate to lower labor costs for long-distance pipelines. However, DCVG can be performed with simpler equipment and may not require a separate signal generator if the existing CP system can be interrupted. The availability of skilled technicians proficient in one method over the other may also be a deciding factor.

Finally, ensure your choice complies with all applicable regulations. Various government entities at the federal and state levels mandate specific types of integrity assessments. Your company's internal standards and risk management policies will also dictate the level of detail and type of data required. The chosen survey method must produce data that satisfies these compliance and governance requirements.



The debate between ACVG and DCVG is not about which method is universally superior, but which is strategically optimal for a given situation. ACVG excels in its speed and sensitivity, making it a powerful tool for precisely locating a wide range of coating defects. DCVG provides the crucial context of corrosion significance, allowing for risk-based prioritization of repairs that directs resources where they are needed most.

The most effective pipeline integrity programs recognize that these methods are not mutually exclusive. They are complementary tools in the corrosion professional's toolkit. In many cases, a hybrid approach—using ACVG for an initial rapid screening followed by DCVG to characterize the most significant findings—can provide the most comprehensive and cost-effective solution.

Ultimately, the best choice is an informed one. By carefully assessing your pipeline's design, its operating environment, your specific integrity objectives, and regulatory obligations, you can select the survey method that will most effectively safeguard your asset's future, ensuring its safe and reliable operation for years to come.
